Description

AC Infinity Advanced Tent Kit with WIFI Connection. Ideal for 2 plants, the 60x120x180 cm tent is ideal.
An advanced grow tent kit with smart controllers and integrated components to start an indoor growing system.
The controller automates each fan and light with individual programs, dynamically adjusting speed and brightness. Connect your mobile device to the app via WiFi to automate and monitor the right term, from anywhere. Next generation EC motor inline fan 15cm and clip fan 15cm. Full spectrum 60X120cm grow light with Samsung LM301H LEDs.
Premium 2000D Mylar foil lined tent 60x120x180 cm, carbon filter, air duct, fabric pots, pruning shears and more.

Product Description

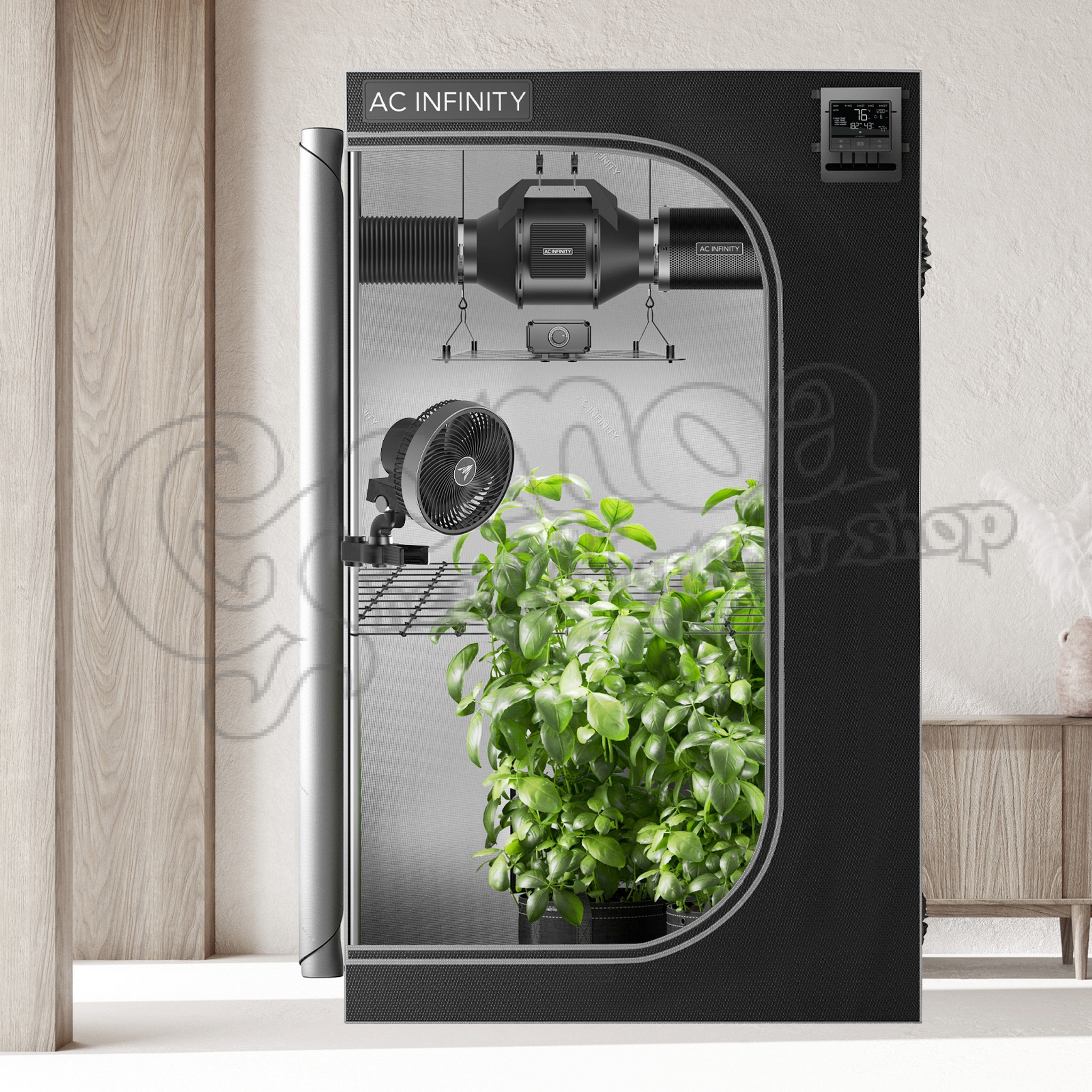

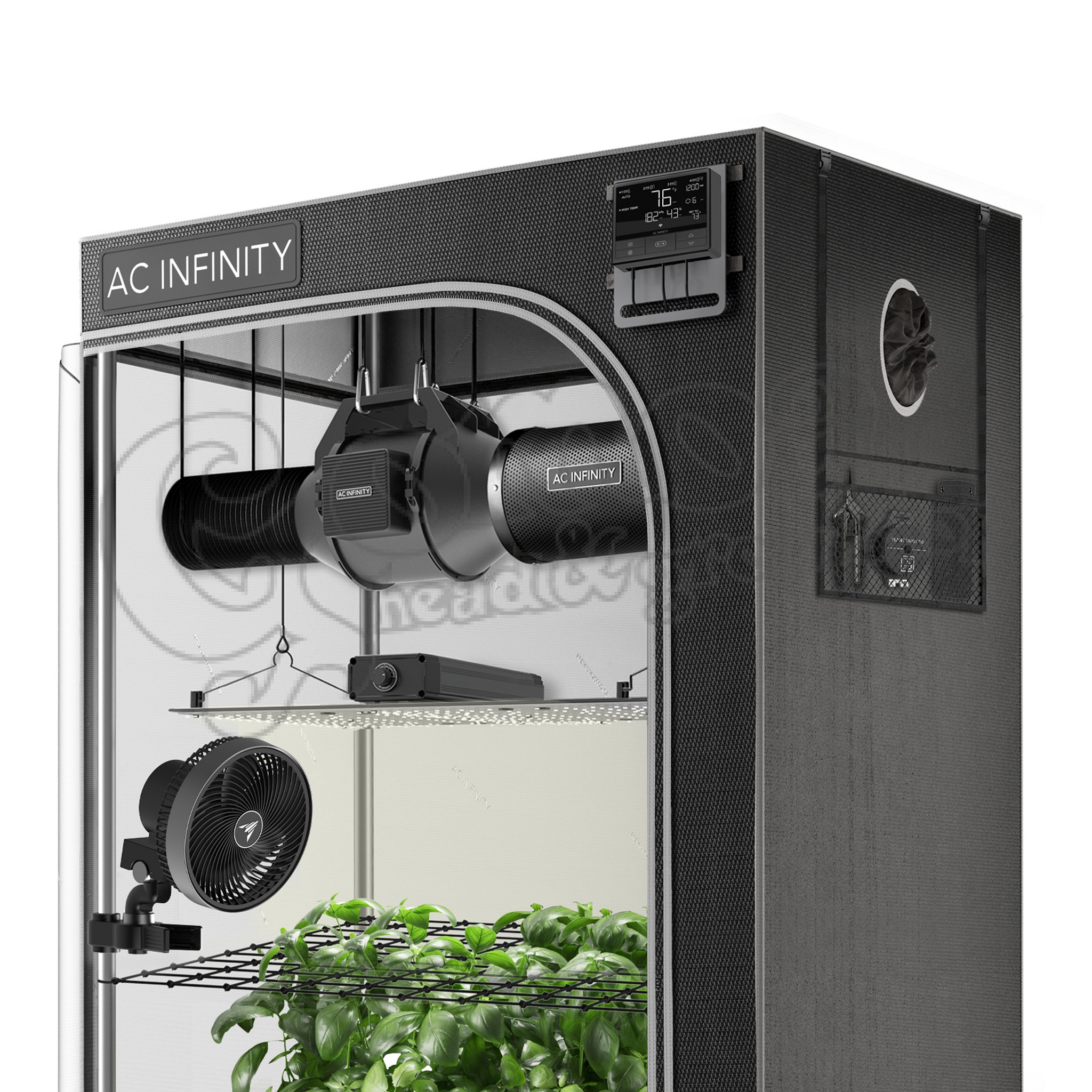

Advanced grow tent system with intelligent controls to manage the growing environment and ensure ideal growing conditions for a successful harvest. The built-in fan, carbon filter and air duct regulate the temperature conditions of the tent by removing heat, humidity and odors. The air is circulated by a new generation clip-on fan with oscillation range control, designed to provide plants with personalized, unique airflow for longer periods of time. Algorithmically selected and arranged LM301H diodes on the grow light emit high-power LED light with wide coverage to simulate natural sunlight and optimize growth. These devices are housed in a high-density oxford grow tent with a solid steel frame and Mylar walls to create a climate-controlled growing space.

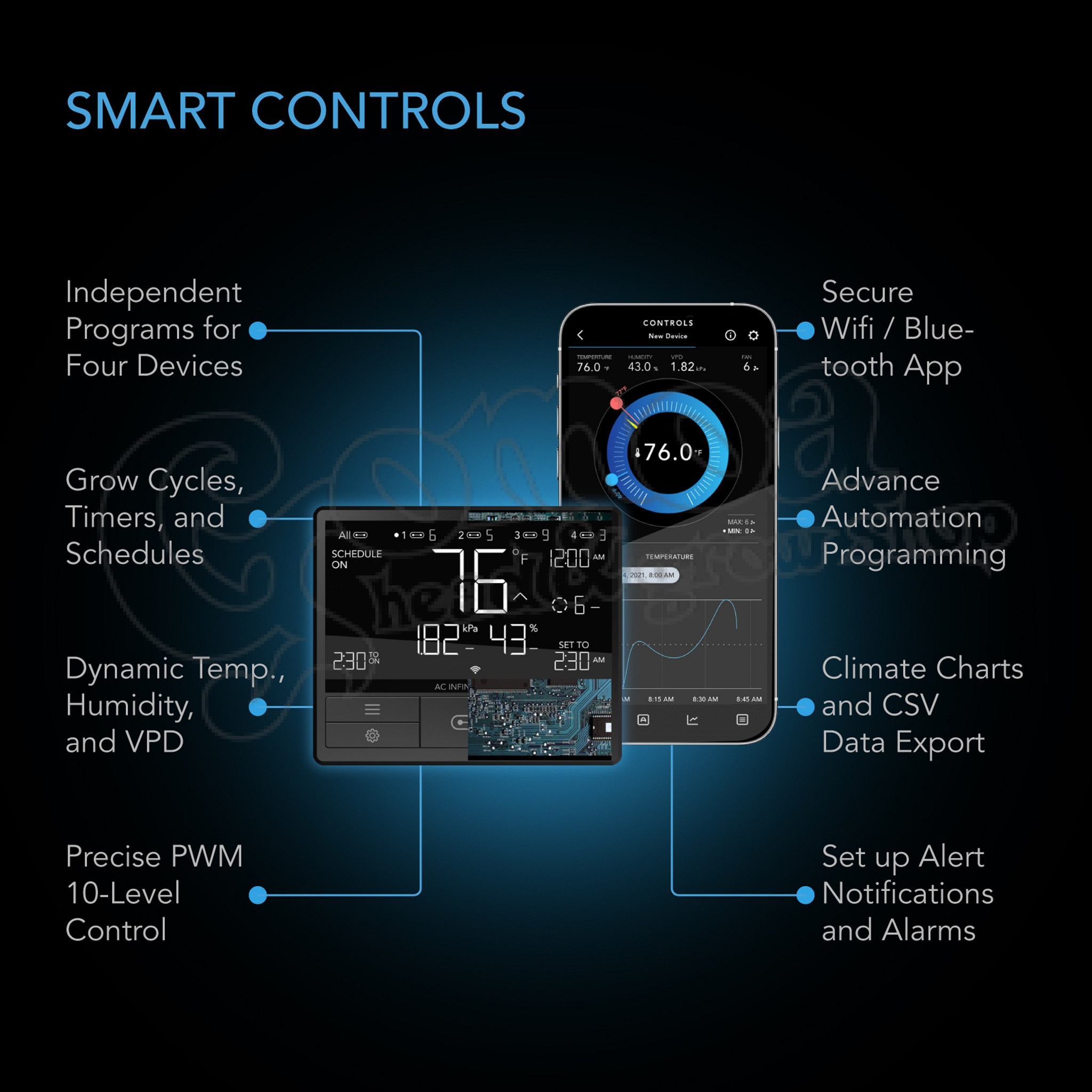

Intelligent Programming
These components are integrated into the CONTROLLER 69 PRO, which is designed to provide shared or independent programming for each device. This central control unit can set dynamic programs for activation. Your grow devices are adjusted to VPD (vapor pressure deficiency) levels, temperature and humidity to help you better set up the ideal growing space. Timer, cycle and schedule modes provide on-demand activation for a variety of indoor growing uses. Connect securely to the AC Infinity app via WiFi to remotely access your indoor grow system from outside your home, use advanced programs, alarms, notifications and historical charts.

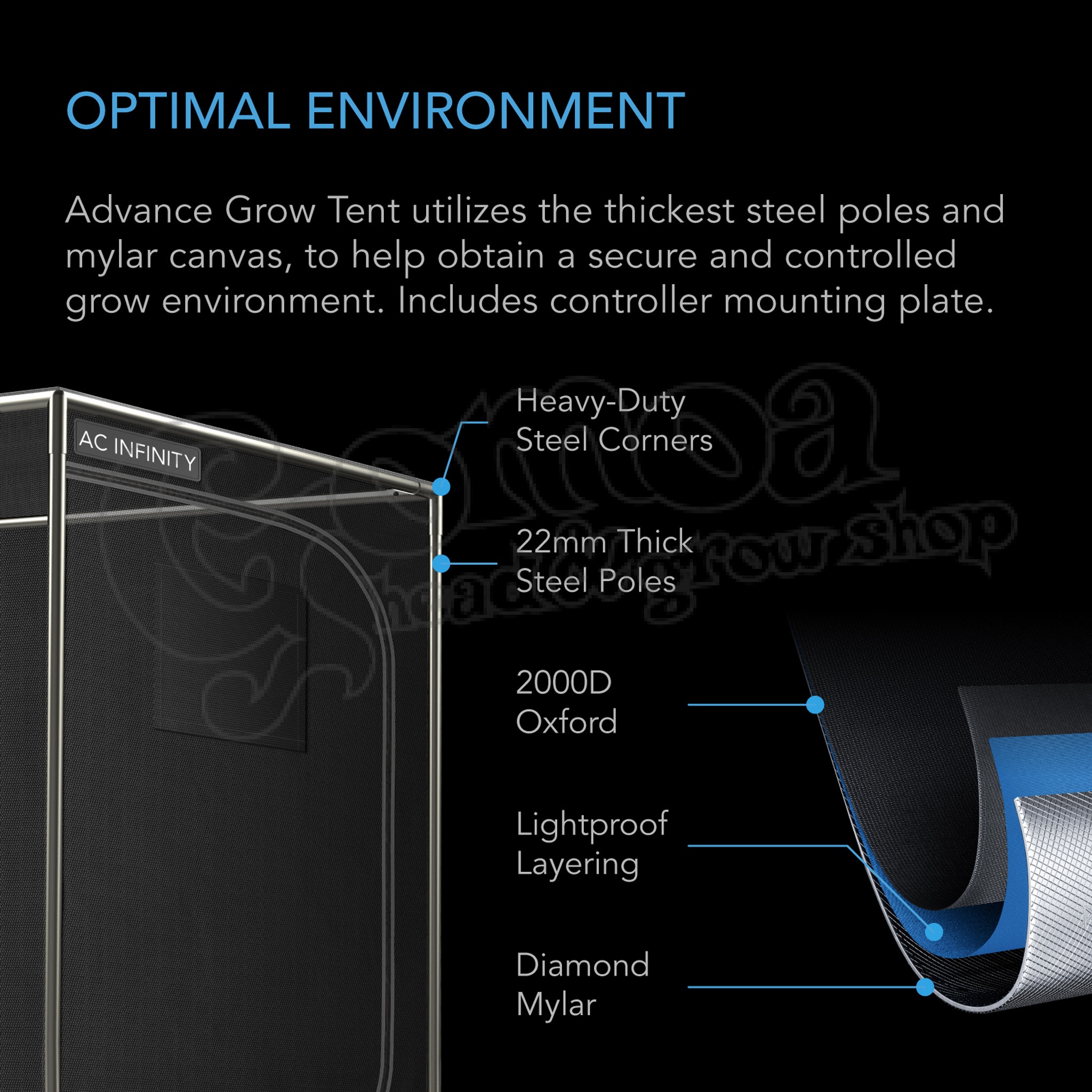

Grow Tent and Attachment Points Dimensions

• Tent Dimensions 120.8 x 60 x 180 cm
• Tube Opening Dimensions 100mm, 150mm, 200mm
• View Window Size 30.0 x 30.0 cm
• Rear Intake Size 15.0 x 35.0 cm
• Side Intake Size 15.0 x 28.0 cm
• Attachment Strap Length 16.5 cm
• Outer Tent Material: Oxford
• Inner Tent Material: Mylar
• Rod Material: Steel
• Rod Thickness: 22 mm
• Rod Load Capacity: 68kg

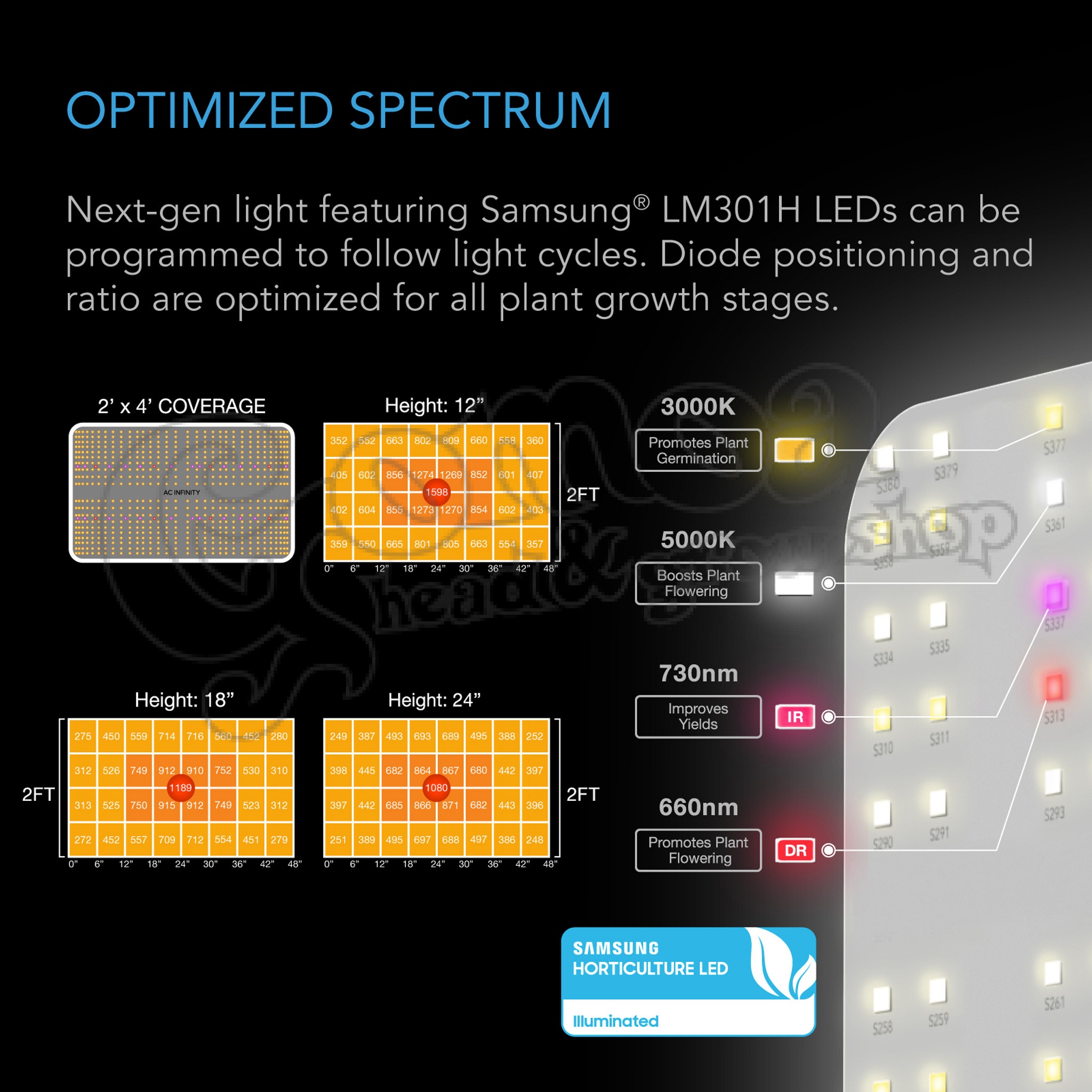

LED Grow Light Features

• Lamp Dimensions 30.0 x 60.0 cm
• LED Panel Thickness 1.1 cm
• Driver Dimensions 21.9 x 4.0 cm
• Coverage Area: 60X120 cm
• Diodes: Samsung LM301H
• Number of LED Chips: 544 LED Driver
• AC Infinity Self-developed IB-200 Driver
• Efficiency: 2.65 µmol/j
• 1598 PPFD
• Spectrum: 660 nm, 730 nm, 3000 K, 5000 K
• Power: 200 W
• Voltage: 100-277 V AC
• Frequency: 50/60 Hz
• Current: 1.84 A @ 120 V | 0.92 A @ 240 V | 0.80 A @ 277 V
• Controller Digital dimmer timer
• Connector type: European plug
• Operating humidity: 35-85% RH
• Operating temperature: 0-70 °C
• Expected life: 50,000 hours

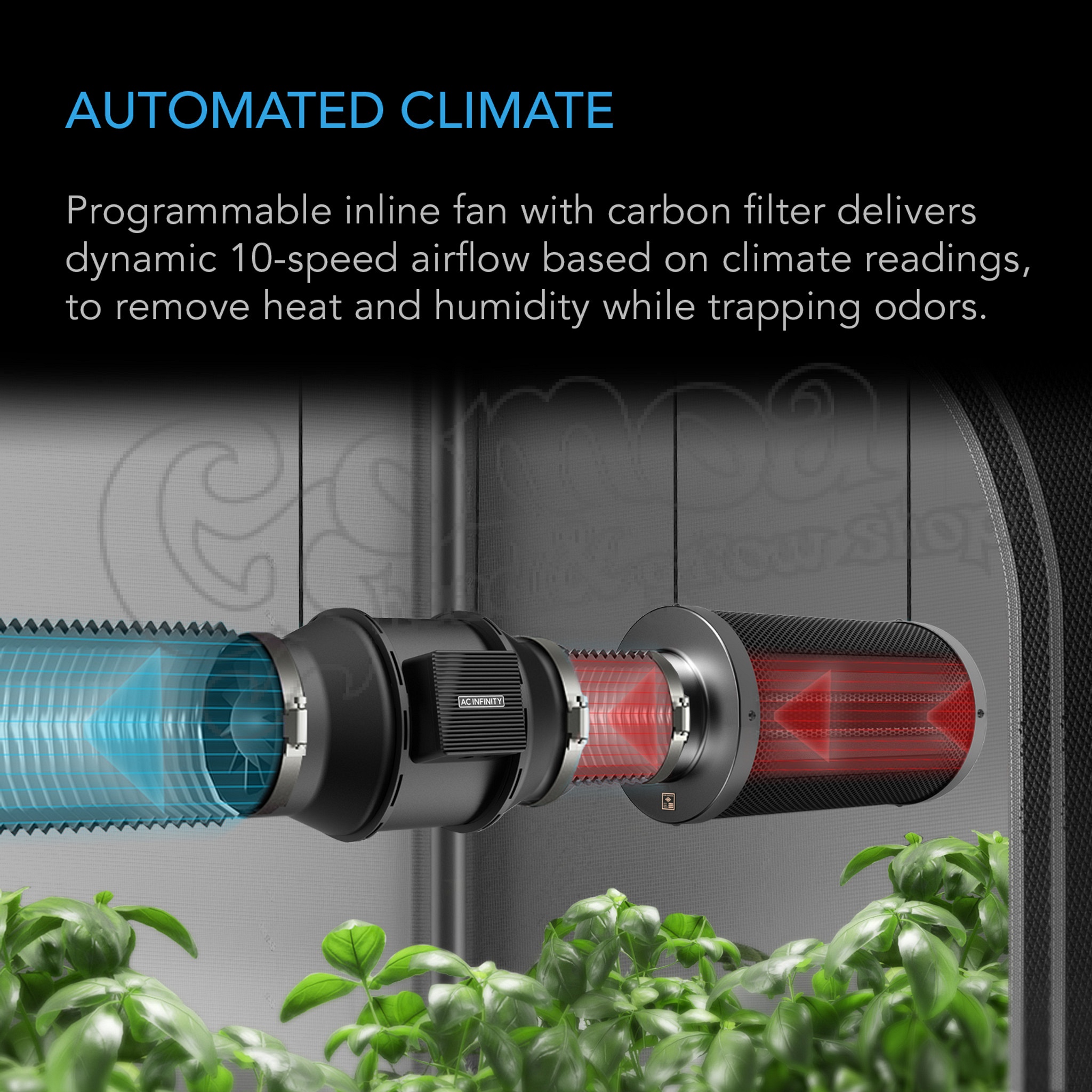

Built-in fan size

• Tube size 150 mm
• Overall dimensions 21.2 x 32.0 x 20.0 cm
• Mounting hole spacing 8.0 x 6.0 cm
• Screw hole size Ø 0.6 cm
• Control cable length 3 meters
• Cable length to plug 2.5 meters

Performance and specifications built-in fan:

• Total airflow 600m3/h
• Total noise level 34 dBA
• Static pressure 394 Pa
• Voltage 100-240V AC
• Frequency 50/60Hz
• Max. power consumption 65 W
• Average power consumption 35 W
• Current 0.95 A
• Power plug type: US plug (NEMA 1-15 Type-A)
• Operating humidity 35 - 85% RH
• Operating temperature 0-60 Celsius
• Protection: IP-44
• Fan bearings: Double ball bearings
• Mounting positions: Horizontal or vertical
• L10 Expected life 67,000 hours

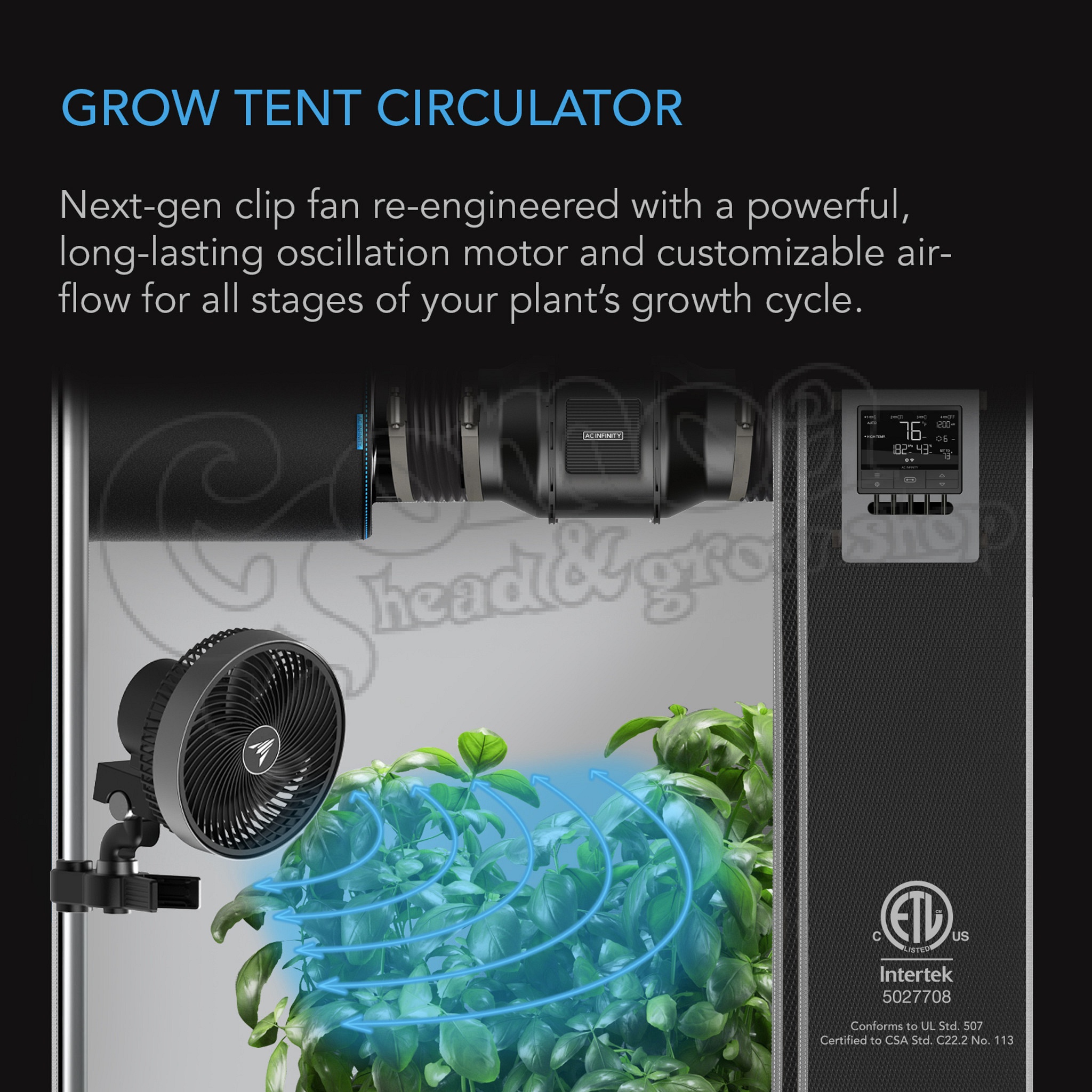

Clip-on fan specifications

• Diameter 43 cm
• Overall dimensions 22.2 x 26.6 cm
• Cable length to plug 250 cm
• Maximum airflow 552m3/h
• Total noise level 31 dBA
• Static pressure 25 Pa
• Operating voltage 100-240V AC
• Power 11 W
• Current 0.15 A
• Operating humidity 35 - 85% RH
• Operating temperature 0-60 Celsius
• Water Resistance IP-44
• Rotation Range 90°
• Tilt Angle 55°
• Auto Oscillation Function
• Fan Bearings: Double Ball Bearing
• Mounting Positions: Horizontal or Vertical
• Expected Lifespan 67 000 hours

Carbon Filter Specifications

• Air Duct Opening Size 150 mm
• Overall Dimensions 40.5 x 22.7 cm
• Flange Length 4.0 cm
• Flange Material Aluminum
• Flange Design Reversible
• Mesh Material Galvanized Steel
• Carbon Type Australian Virgin RC412
• Carbon Grade 1200+ IAV
• Carbon Thickness 38 mm
• Max Airflow 696m3/h
• Air Duct Size 15.2 cm
• Length 240cm
• Outer Layer PVC Thermoplastic
• Inner Material Aluminum Foil

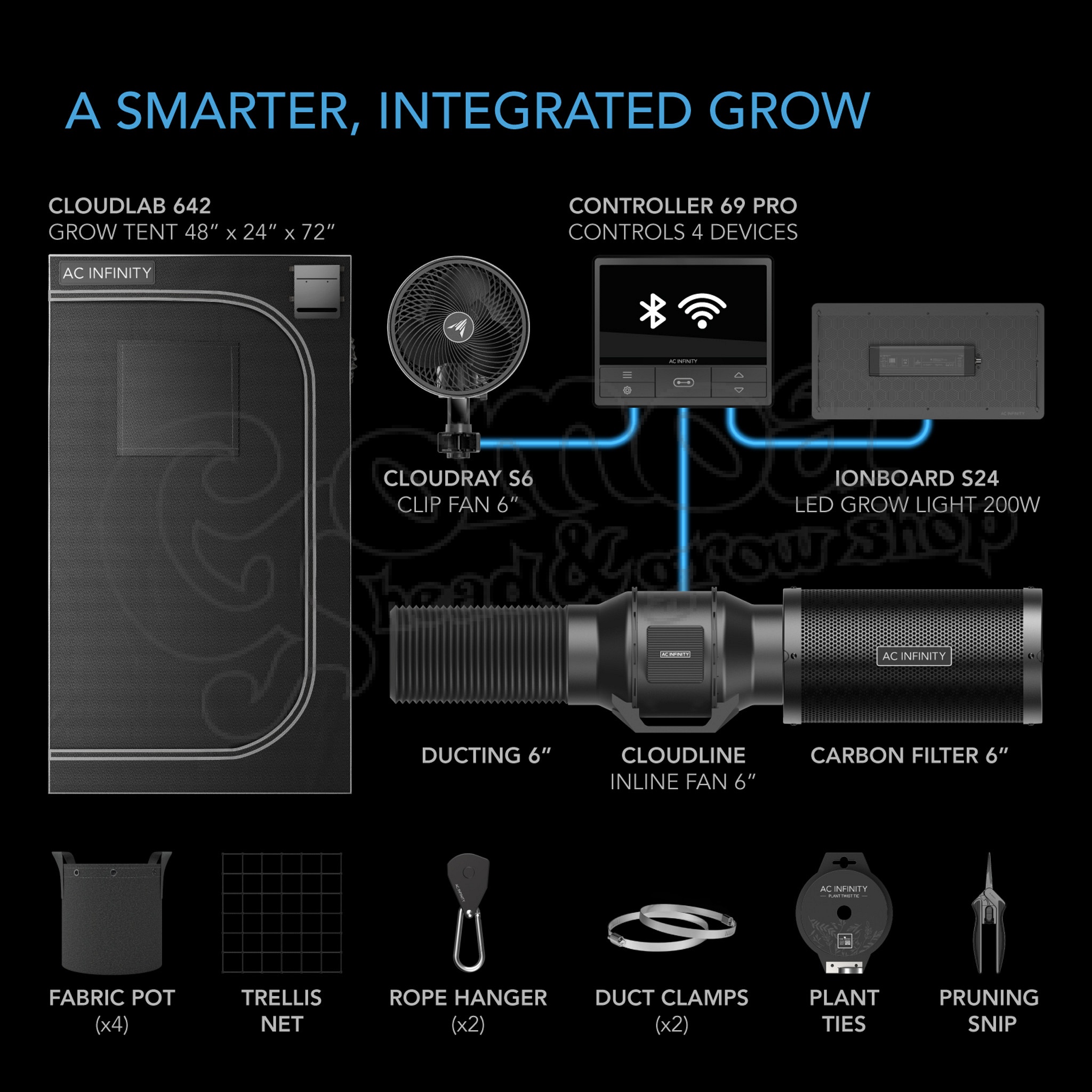

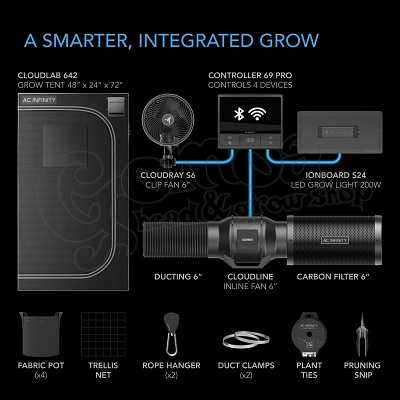

Complete Kit Included
This package includes all the essential components to help you quickly get started with indoor growing while eliminating the guesswork of buying individual parts. The complete grow tent kit includes:

• CLOUDLAB 642 – Special grow tent 60x120x180 cm (x1)
• CONTROLLER 69 PRO – Grow tent controller (x1)
• CLOUDLINE A – Built-in fan 150mm (x1)
• IONBOARD S24 – LED grow light panel 5X10cm (x1)
• CLOUDRAY S6 – Oscillating circulation fan (x1)
• Carbon filter 150mm (x1)
• 15 cm flexible pipe, 2.4 m long (x1)
• 15 cm steel clamps (x2)
• 15 cm adhesive tape (x1)
• Velcro ties (x10)
• 19 liter fabric pots (x4)
• Flexible mesh 6x1.2 m (x1)
• Black wire twisted ties (x1)
• Micro tip pruning shears (x1)
